2-480706-0
Manufacturer:
TE Connectivity
Mfr.Part #:
2-480706-0
Datasheet:
Description:

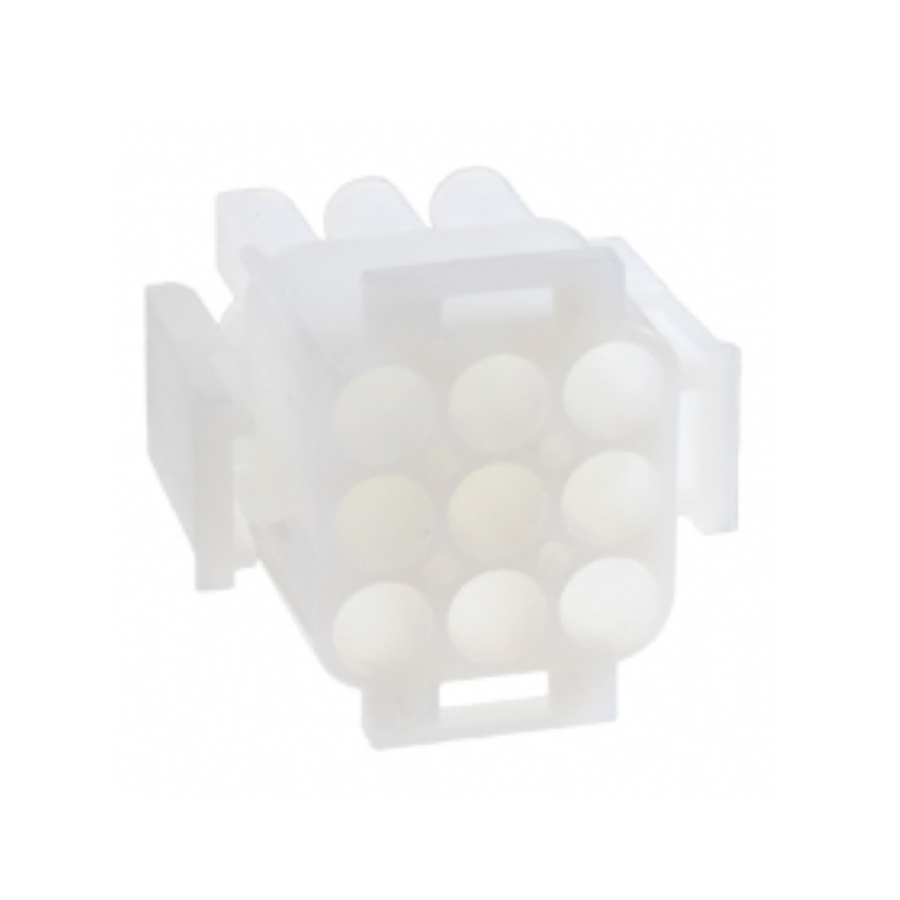

Headers and Wire Housings Free Hanging Male or Female, Plug Number of Positions:9 Pitch:6.35 mm
| Parameter | Value |
|---|---|
| Length | 27.38 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 27.43 mm |
| RoHS | Compliant |
| Pitch | 6.35 mm |
| Current Rating | 19 A |
| Flammability Rating | UL94V-2 |
| Approvals | CSA |
| Number of Circuits | 9 |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Male or Female |
| Number of Contacts | 9 |
| ELV | Compliant |
| Connector Type | Male or Female, Plug |
| Number of Positions | 9 |
| Number of Rows | 3 |
| Row Spacing | 250 µm |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 600 V |
| Housing Color | Natural |
| Panel Thickness | 2.286 mm |
| Contact Gender | Male |
| Number of Power Positions | 0 |
| VDE Tested | Yes |
| Number of Signal Positions | 0 |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 342
Distributors
pcbx
pcbxUnit Price$0.50697
Ext.Price$0.50697
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.50697 | $0.50697 |
| 10 | $0.40524 | $4.05240 |
| 25 | $0.40130 | $10.03250 |
| 50 | $0.39740 | $19.87000 |
| 100 | $0.39354 | $39.35400 |
| 300 | $0.38971 | $116.91300 |
| 500 | $0.38592 | $192.96000 |
| 1000 | $0.38216 | $382.16000 |
| 3000 | $0.37175 | $1115.25000 |
| 5000 | $0.36163 | $1808.15000 |
